450mm Conveyor SMT Reflow Soldering Oven 1920kg RF-450XL

UNIQUE AUTOMATION LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

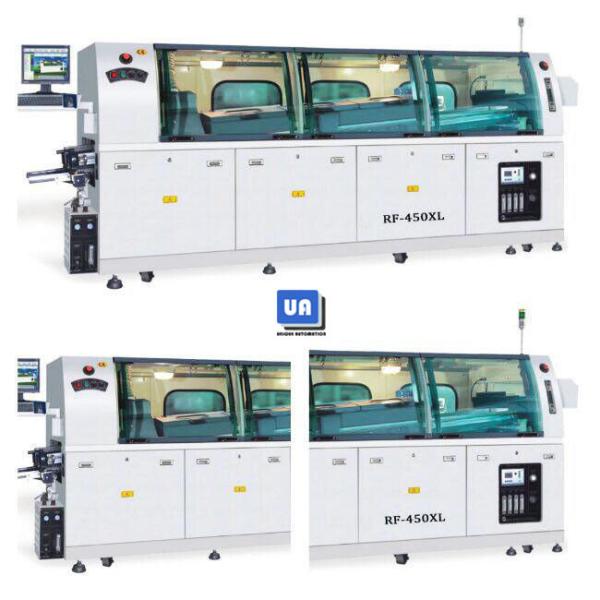

450mm Conveyor SMT Reflow Soldering Oven 1920kg RF-450XL

  • 1
  • 2

Brand Name : UA

Model Number : RF-450XL

Certification : CE

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 25 units per month

Delivery Time : 5-30 days

Packaging Details : vacuum packing for sea transportation

Dimensions (mm) : 4500*1500*1700

Weight (kg) : 1920

Control : PC+PLC

Preheating zone length (mm) : 1800

Preheater : Cast aluminum plate + hot air

Solder pot capacity (kg) : Approx. 400

Solder pot movement : Up/down, in/out all-electric control

Solder pot material : Titanium alloy

Conveyor width adjust : Electric control

Conveyor width (mm) : Max 450

Flux spray : Step motor control

Flux feeding : Auto feed

Finger type : V, L or customized

Power supply : 3P/AC 380V 3P/AC 220V

Contact Now

Lead Free Reflow Soldering Machine

Customized Wave Solder Lead Free Reflow Soldering Machine RF-450XL

Features

1. Lead-free manufacture procedure and environment friendly design

2. Specially made aluminum alloy guide rail provide hardnessand intensity

3. Auto synchronal input board connected device, ensures asmooth and steady input of board

4. Fluxes automatic supply system, low liquid warming

5. 1800mm preheating zone length, independent PID temperaturecontrol, heating even and steady

6. Chip wave and lambda wave, new and advanced technology ofhorizontal flow, little tin oxygenation,

ensure solder point perfect.

7. Auto conveyor finger cleaning system

8. Add a air curtain which compressed air-curtain to prevent soldering flux from entering

into preheating zone in the spray system.

9. The soldering flux liquid-level is supplied automatically, so you don't need to operate it manually.

Equipped with flowmeter to accurately control the flow.

10. With high-effective cast-aluminum heating plate and entire hot air preheating box, temperature

is more even and heat exchange speed will faster than before.

11. The surface temperature of the cast aluminum heating plate is lower than flux burning point,

no fire hazard, safe and reliable.

12. 12KW's case-iron heating plate, heat evenly and has long service life.

13. Nozzle has double wave crest design. It can be disassembled separately.

Using unique innovation advectional technology, wave crest is stable.

14. High-quality titanium alloy finger, is anti-corrosive and can be used for fixture.

Specifications

Model RF-450XL
Machine Dimension (mm) 4500*1500*1700
Weight (kg) 1920
Control PC+PLC
Preheating zone length (mm) 1800
Preheater Cast aluminum plate + hot air
Solder pot capacity (kg) Approx. 400
Solder pot movement Up/down, in/out all-electric control
Solder pot material Titanium alloy
Conveyor width adjust Electric control
Conveyor width (mm) Max 450 or customized
Flux spray Step motor control
Flux feeding Auto feed
Finger type V, L or customized
Cooling type Forced air cooling
Power supply 3P/AC 380V
3P/AC 220V
Options available N2
Top IR preheating
Central support for big PCB

Company Profile

Unique Automation (referred to as "UA") is a High-speed developing enterprise of High Precision

SMT Equipment manufacturer, which specializes in automation equipment for electronics industry.

Unique Automation (UA) was founded in 2010 with headquarter in Shenzhen and its manufacturing facilities

of more than 5,000 square meters.With over 11 years’ experience in design and manufacturing of SMT

equipment, UA is one of the most professional solution providers in the SMT equipment market.

We specialized in wave soldering machine, reflow oven, SMT automatic vision paste printer, SMT laser

marking machine, conveyors, PCB/PCBA loader & unloader, THT production lines, fixtures/pallets, SMT

consumables and etc, and has exported these cost effective and high quality equipment to more than

30 countries in Europe, America, Middle-east, Southeast Asia, and Africa. We will spare no effort in providing

SMT equipment to our customers with the aim of “Quality First, Customer Priority” as we have been

doing for the last 11 years.

FAQ

Q1: Are you a trade company or manufacturer ?

We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line.

OEM & ODM service are available.

Q2 : What is your payment terms?

T/T, L/C, etc

Q3: What’s your terms of packing ?

We usually adopt this method : internal vacuum packing and outer wooden packing.

Or according to your requirement.

Q4 : What is your delivery date?

The delivery date is about 20-30 working days after receive the payment.

Q5:If we come to your factory, you will provide the free training ?

Yes, warmly welcome you to visit our factory and we will arrange the free training for you.

Q6 : Whether these products have quality assurance ?

We have strict QC and all products have 100% quality tested before delivery.

`

Q7: Why choose UA ?

Experienced in design and manufacturing of SMT equipment, UA is one of the most professional

solution providers in the SMT equipment market.

Package and Shipping

Packing : internal vacuum packing and outer wooden packing.

Shippment

1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.

( Fast transportation, safe and accurate)

2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.

3. By truck. Fast transportation and low cost.

4. Other method as you customized.
